Pool Cabanas
Quadra
A multifunctional space with style and flare.

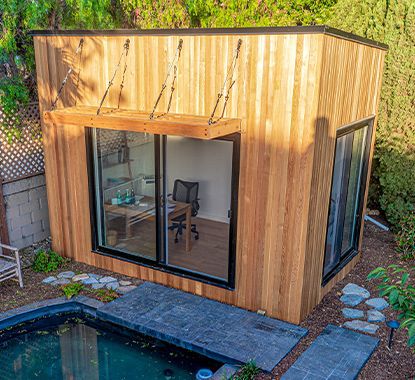

The Quadra is a luxurious pool cabana at home in any backyard. With its sharp lines and minimal overhang, the Quadra is more than just four walls - it’s stylish, modern, bold, and multifunctional.
overview
-
Whether you want to work from home, learn from home, or even create a little home away from home—the Quadra can help! Perfect as an office or gym, a studio for art, music, dance or yoga, a quiet classroom for remote learning, or just a private place to relax, the Quadra is an ultra-flexible, ultra-modern, multi-use backyard space.
-
illustration only
12' x 14' Quadra
Features
- Contemporary flat roof (1/12 pitch).- Modern, minimalist design.- Premium STK Western Red Cedar siding + stainless steel fasteners.- Full 2-year warranty on materials and craftsmanship!
Popular Options & Upgrades:
Clear cedar siding (thin, modern nickel gap or v-joint profiles)
Standing seam steel siding
Pine T&G or cedar channel interior cladding
Modern sliding doors and windows
Maintenance-free Canexel siding in a variety of colours
Maintenance-free Maibec wood siding in 4 natural tones
Available Quadra Studio sizes
The Quadra is offered in sizes starting at 80 ft². If you don’t see the size you’re looking for in the price list, please contact us.
Cove Interior
Below are some Quadra interiors to help you envision your layout. Click to learn more about the buildings featured. For more ideas and photos, visit our Interiors page.
Floor plans
Feeling inspired? Get creative with this fun, simple layout tool for planning your interior. Or, download graph paper and plan your space the old fashioned way.
Quadra studio floor plan configurations
-
3D Tour Of a Quadra Home Studio
Tour the 14’ x 12’ Quadra two ways: as a bright backyard office, or a trendy poolside cabana! This custom model features upgrades such as clear cedar siding, trim, and post wrap with ultra-modern sliding doors and vinyl windows.
Visit our 3D Tours page to see all the Summerwood Styles.
-
Quadra Studio video tour
Assembly
Level of Difficulty:
The Quadra includes easy-to-follow instructions and diagrams that will walk you through every step of the building process. Our online and telephone assembly support are always within reach.
* photos and renderings illustrate a combination of standard features and construction/material upgrades; see style tabs for detailed product specifications
details & specs
Quadra Studio Dimensions
| A | B |
|---|---|
| BUILDING DEPTH | BUILDING HEIGHT |
| 8' | 8'- 9" |
| 10' | 8'- 7" |
| 12' | 8'- 6 3/4" |
| 14' | 8'- 4 3/4" |
| 16' | 8'- 4 3/4" |
| 18' | 8'- 2 3/4" |
| C | D | E | F |
|---|---|---|---|
| FRONT BUILDING HEIGHT | FRONT WALL HEIGHT | OVERHANG | PITCH |
| 9'- 5 1/2" | 9' | 2 1/2" | 1:12 |
READING THE DRAWING
Use the diagram and corresponding table to get a sense for the size of your Summerwood building.
Most dimensions are approximate:
building depth and length are measured from the outside of the floor and wall framing (siding, sheathing, and trim aren't included)
→ for true exterior dimensions, add the thickness of your chosen siding, sheathing (if applicable), and corner trim
→ for true interior dimensions, subtract the thickness of the wall framing (EG: 3 ½" for 2x4 walls)
building height is measured here from the underside of the bottom wall plate to the top of the ridge; it doesn't include the floor (if applicable), foundation, or roof finish, since these vary depending on your building's size
→ for your building's exact height from grade, talk to one of our design specialists
wall height is measured from the underside of the bottom plate to the top of the double top plate
Wall Plan
Wall plan drawing for a Quadra
For true exterior dimensions, add the siding, sheathing (if applicable), and corner trim pieces. The Canexel siding is 3/8" thick, the cedar siding is 3/4" thick and the log siding is 1 1/2" thick. The wall sheathing varies from 7/16” to 3/4”. The corner trim is 3/4".
If you have any other questions pertaining to the size of your Quadra backyard studio building, please do not hesitate to ask us, we're here to help.
Roof Framing Plan
In strong competition with hip roofing and gable roofing, are flat roofs. These roofs are common in Quadra studio styles, being one of the easiest roofs to install and frame when compared to other roof styles.
The Quadra studio roof is designed to have a standard 12” overhang around the perimeter. The roof consists of ½” plywood roof boards and spruce rafters allowing you to lay the EPDM rubberized membrane on top.
Due to its geometry and low pitch, flat roofs do not always require vents. If vents are desired, they can be installed on the tallest wall or sidewalls of the building. Consult with your contractor or roofing company, for the most effective ventilation system for your roof.
Roof framing drawing for an Quadra
Overhang Detail
Soffits are the cedar trim pieces that are attached to the underside of the rafter ends. Fascia is typically the cedar 1x4 that’s used to cover the rafter tips and provide a nice straight level line for the bottom of your roof.
Quadra overhang detail
Foundation
Though the Quadra studio is engineered to sit on concrete blocks or traditional patio stone foundation, depending on terrain, gradient or application, you may require more advanced foundation options. For example, Sonotube footings are ideal for situations where you’re faced with steep grades or rocky terrain, whereas concrete pad is ideal for flatter surfaces and larger cabins.
Visit our Foundations page for more details or contact one of our design specialist for assistance.
Quadra building foundation
Materials
Like all Summerwood designs, the Quadra garden studio is a fantastic display of premium grade materials coming together for any of your outdoor needs. Our materials are chosen for their aesthetic appeal, durability, and environmental friendliness. Construction is engineered for garages and cabins but ideally suited for storage sheds and pool cabanas as well.
| item | material | dimension | notes |
|---|---|---|---|
| runners | pressure treated | 2x6 | underside of floor framing |
| joists | pressure treated | 2x4 - 2x8 | 16" on center |
| sheathing | spruce | 48" x 96" x 5/8" | tongue & groove |
| material upgrades | |||
| floor insulation | expanded polystyrene | 3 1/2" & 5 1/2" | within floor cavities |
| pine flooring | white pine | 1x6 | tongue & groove |
| item | material | dimension | notes |
|---|---|---|---|
| wall plates | spruce | 2x4 - 2x6 | bottom, top, double top |
| wall studs | spruce | 2x4 - 2x6 | 16" on center |
| siding | cedar channel | 1x8 | standard horizontal siding |
| material upgrades | |||
| canexel siding | canexel | 1x8 | studs & plates |
| cedar wall framing | cedar | 2x8 - 2x6 | studs & plates |
| esu1a | osb + typar | n/a | wall sheathing & building wrap |
| wall insulation | expanded polystyrene | 3 1/2" & 5 1/2" | within wall cavities |
| item | material | dimension | notes |
|---|---|---|---|
| ceiling joists | spruce | 2x4 - 2x10 | ceiling framing |
| rafters | spruce | 2x4 - 2x10 | 24" on center maximum |
| hub | spruce | 6x6 | octangonal center member |
| sheathing | osb | 48" x 96" x 7/16" | n/a |
| material upgrades | |||
| cedar roof boards | cedar | 1x6 - 1x8 | n/a |
| cedar rafters | cedar | 2x6 - 2x12 | n/a |
| roof insulation | expanded polystyrene | 3 1/2" & 5 1/2" | on roof surface |
| item | material | dimension | notes |
|---|---|---|---|
| cedar trim | cedar | 1x6 - 1x8 | corners, soffit, fascia |
| material upgrades | |||
| maintenance free trim | versatex | 1x4 - 1x8 | corners, soffit, fascia |
Enhanced Siding Package (ESP)
Your Quadra includes our enhanced siding package: a layer of sheathing (OSB or plywood) and building wrap (a breathable, water-resistant air barrier) between the siding and the wall framing that give the structure shear strength and act as an additional plane of protection against moisture.
Enhanced siding package upgrade
Popular upgrades
Interior Cedar Siding and Framing
The Quadra studio style allows for a wide array of interior finishes. Our cedar siding or framing interior upgrade can be incorporated on the walls and/or ceiling, providing a warm rustic feel.
Interior choices for an Quadra
Finishing
Once your backyard Quadra backyard studio is complete, there are a few things you can do on the inside to add to the comfort and enjoyment of your new Summerwood Quadra design.
Please see Interior Finishing under Advice for more information
Insulation
If you plan to heat your Quadra studio shed, insulation may be added either at purchase or after-the-fact if you decide to do it later. The walls and roof are constructed in such a way that adding insulation either as an option or on your own is quite simple to do. If you’re thinking of using your Quadra all year round, then insulating it is the way to go.
Insulation for an Quadra building
Electrical
The inside of our Quadra backyard studio is deliberately left exposed to accommodate wiring for lighting, outlets, heating equipment, whatever you have in mind. Once the installation is complete and before finishing your interior, simply have an electrician come and do their thing.
Electrical configuration option
Plumbing
Provided you have a water source nearby, your Quadra studio pipes can be run for sinks and taps. If you have something a little more elaborate in mind like a shower or toilet, best to make sure it is coordinated with the concrete pad and installation of the shed.
Plumbing for an Quadra
pricing
Visit "options and accessories" for detail and pricing of our accessories.
Find below pricing for all of the Quadra sizes that we have built so far. Don't see your size? Ask us and we will provide you with a quote.
Note that pricing below is for the base kit only. Doors, windows, and other options are à la cart so that you can customize to your hearts content.
Custom Designs
Summerwood will take your custom design and make it your own. If you have something different in mind, talk to one of our designers about bringing it to life.
