Windsor

Southern charm and lots of elbow room make it a favorite pool cabana.

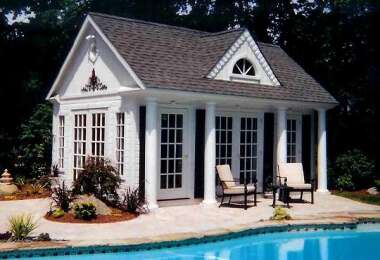

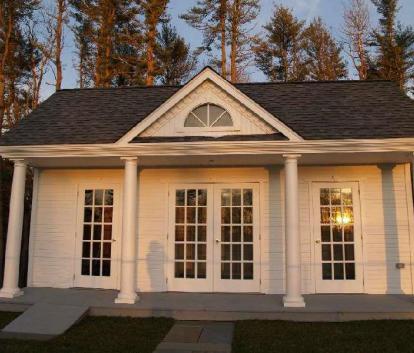

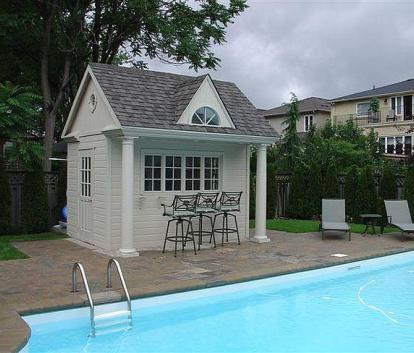

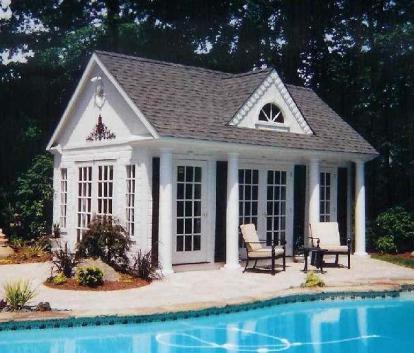

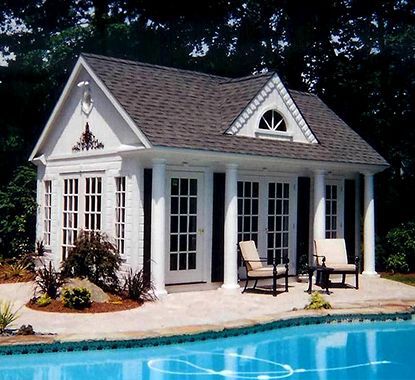

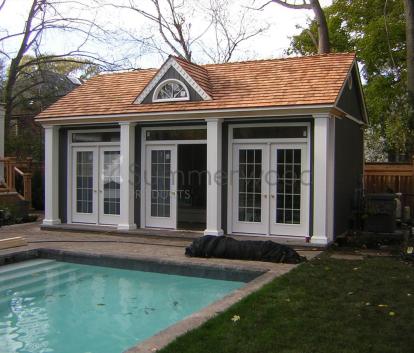

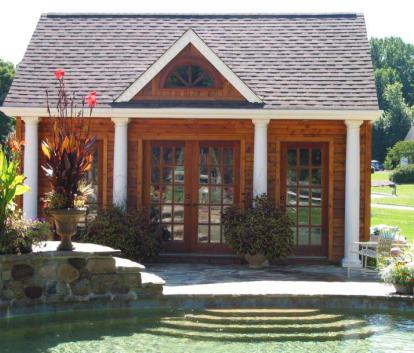

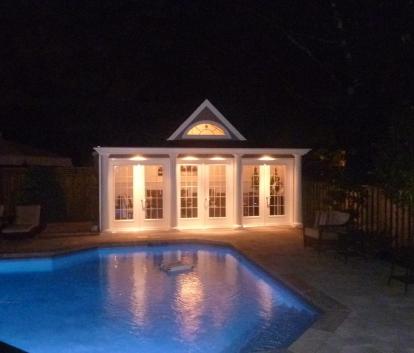

Windsor style pool cabanas evoke an Old World mystique that enhances any poolside setting. Its classical columns, functional louvered shutters, and double French doors are among the many options available for this beauty. The high, gable-style roof provides space to store pool equipment and an airy feeling inside. Simply put, Windsor pool houses create a relaxing environment you’ll want to spend all your spare time in. Make it your own in the Custom Design Center!

Swipe to browse photos or tap for pricing/details.

overview

  • Our magnificent Windsor style pool cabana and its classical columns enhances any poolside setting. View more on pricing and the Windsor pool cabana in these style tabs.

  • Windsor style pool cabana

Features

- Characterized by a spacious high gable roofline.
- The magnificent dormer and steep roof allows for plenty of headroom above.
- Perfect for entertaining and parties.

Popular options:
  • Double French doors
  • Arch windows
  • Traditional flower boxes
  • Storm shutters
  • Asphalt shingles.
  • Extra overhang

Floor plans

Below are a few sample Windsor design floorplans to get you started.
For more ideas and photos please visit Interiors under inspiration.

  • Windsor pool cabana Floor Plan 1
  • Windsor pool cabana Floor Plan 2
Windsor floor plan configurations

Try this Floor PlannerTool to design your own Windsor space and share, as you like.
You may also download graph paper and print out a few sheets to help designing your own space!

Available Windsor pool house design sizes

Windsor have sizes ranging from 96 sq.ft to 468 sq.ft

If you cannot find your size please contact us.

Assembly

Level of Difficulty:

Like all of our buildings, our Windsor pool cabana includes easy-to-follow instructions, diagrams, and assembly videos that will help you through the process.

Below is a series of photos showing one of our Windsor buildings being assembled.

  • Windsor pool cabana foundation

    Windsor building foundation

  • Windsor pool cabana Finished Interior

    Finished Interior of a Windsor

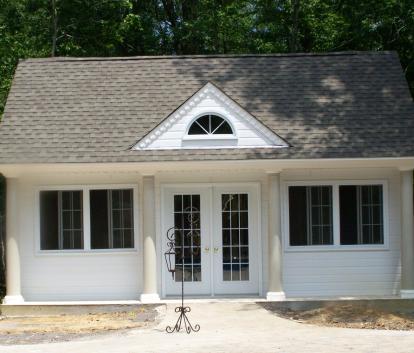

  • Completed Windsor pool cabana

    Completed Windsor pool cabana (click image for more details)

Hiring a contractor

Our Windsor design buildings are relatively easy to assemble, however, if you feel that you may want some assistance check out our hire a contractor page.

Hiring a contractor Windsor pool cabana
Contractor working on a roof

details & specs

Windsor Pool Cabana Dimensions

WINDSOR GENERAL SPECIFICATIONS CHART
A B C D E F
BUILDING DEPTH INTERIOR DEPTH PORCH DEPTH BUILDING HEIGHT WALL HEIGHT ROOF HEIGHT
10' 6' - 0" 4' 0" 12' - 4 5/8" 8' 1 1/8" 3' 7 7/8"
12' 8' - 0" 4' - 0" 13' - 0" 8' - 1 1/8" 4' - 3 1/4"
14' 10' - 0" 4' 0" 13' - 7 1/2" 8' - 1 1/8" 4' 10 3/4"
16' 12' - 0" 4' - 0" 14' - 3 1/4" 8' - 1 1/8" 5' - 6 1/2"
18' 14' - 0" 4' - 0" 15' - 0 1/2" 8' - 1 1/8" 6' - 2"
20' 16' - 0" 4' - 0" 15' - 7 7/8" 8' - 1 1/8" 6' - 9 3/8"
22' 18' - 0" 4' 0" 16' - 3 3/8" 8' - 1 1/8" 7' - 4 7/8"
24' 20' - 0" 4' 0" 16' - 10 7/8" 8' - 1 1/8" 8' - 0 3/8"
26' 22' - 0" 4' 0" 17' - 6 1/4" 8' - 1 1/8" 8' - 7 3/4"
28' 24' - 0" 4' - 0" 18' - 2 1/8" 8' - 1 1/8" 9' - 3 5/8"

Our measurements (i.e. 8ft. x 12ft.) are taken from the outside of the floor & wall framing, therefore, they don't include the siding, and/or sheathing.

For true interior measurements, subtract the thickness of the wall framing: 3 ½” for 2x4 walls, and 5 ½” for 2x6 walls. Note: 2 x 4 is actually 1 ½” x 3 ½” and 2 x 6 is actually 1 ½” x 5 ½” due to the properties of "finished” lumber.

Wall Plan

Wall plan drawing for a Catalina building

For true exterior dimensions, add the siding, sheathing (if applicable), and corner trim pieces. The Canexel siding is 3/8" thick, the cedar siding is 3/4" thick and the log siding is 1 1/2" thick. The wall sheathing varies from 7/16” to 3/4”. The corner trim is 3/4".

If you have any other questions pertaining to the size of your Windsor building, please do not hesitate to ask us, we are here to help.

Roof Framing Plan

In strong competition with hip roofing, gable roofing is up there for the most popular roofing style. Common in Windsor pool cabanas are gable roofs, which typically features a continuous ridge, with two sides sloping from the center toward the walls of the structure.

Gable roofs are much easier to frame, sheath, and finish, giving the vertical wall component of a gable roof its style, known as “gable ends”.

Ventilation is easy to install. Due to its geometry and access to gable ends, roof vents can be placed on the gable ends rather than the roof itself. Consult with your contractor or roofing company, for the most effective ventilation system for your roof.

Roof framing drawing for a Windsor building

Overhang Detail

Soffits are the cedar trim pieces that are attached to the underside of the rafter ends.

Fascia is typically the cedar 1x4 that’s used to cover the rafter tips and provide a nice straight level line for the bottom of your roof.

Windsor overhang detail

Foundation

The Windsor style is well suited for a traditional patio stone foundation. A concrete pad is also ideal for poolside applications.

Visit Foundations Page for detail.

Windsor pool house foundation

Materials

Like all summerwood designs, the Windsor pool house is a fantastic display of premium grade materials coming together for any your outdoor needs. Our materials are chosen for their aesthetic appeal, durability, and environmental friendliness. Construction is engineered for garages and cabins, but ideally suited for storage sheds and pool cabanas as well.

Floor
item material dimension notes
runners pressure treated 2x6 underside of floor framing
joists pressure treated 2x4 - 2x8 16" on center
sheathing spruce 48" x 96" x 5/8" tongue & groove
material upgrades
floor insulation expanded polystyrene 3 1/2" & 5 1/2" within floor cavities
pine flooring white pine 1x6 tongue & groove
Walls
item material dimension notes
wall plates spruce 2x4 - 2x6 bottom, top, double top
wall studs spruce 2x4 - 2x6 16" on center
siding cedar channel 1x8 standard horizontal siding
material upgrades
canexel siding canexel 1x8 studs & plates
cedar wall framing cedar 2x8 - 2x6 studs & plates
esu1a osb + typar n/a wall sheathing & building wrap
wall insulation expanded polystyrene 3 1/2" & 5 1/2" within wall cavities
Roof
item material dimension notes
ceiling spruce 2x4 - 2x10 ceiling framing
rafters spruce 2x4 - 2x10 24" on center maximum
ridge board spruce 2x4 - 2x10 n/a
sheathing osb 48" x 96" x 7/16" n/a
material upgrades
cedar roof boards cedar 1x6 - 1x8 n/a
cedar rafters cedar 2x6 - 2x12 n/a
roof insulation expanded polystyrene 3 1/2" & 5 1/2" on roof surface
Trim
item material dimension notes
cedar trim cedar 1x6 - 1x8 corners, soffit, fascia
material upgrades
maintenance free trim versatex 1x4 - 1x8 corners, soffit, fascia

Popular upgrades

Enhanced Siding Package

If you are thinking of adding insulation, consider adding one of our "enhanced siding packages". It's a layer of sheathing (OSB or plywood) and house wrap (Typar and optional HomeSlicker) that provides a moisture barrier to your structure.

Enhanced siding package upgrade

Interior Cedar Siding and Framing

The Windsor style allows for a wide array of interior finishes. Our cedar siding or framing interior upgrade can be incorporated on the walls and/or ceiling, providing a warm rustic feel.

Interior cedar siding choices for a Windsor pool cabana

Roof Dormer

Below is a drawing for a dormer trim on a Windsor design. Dormers may vary in sizes and material, but the construction procedure remains the same.

Roof dormer detail & Windsor building with a dormer

Finishing

Once your Windsor building is complete, there are a few things you can do on the inside to add to the comfort and enjoyment of your new Summerwood design.

Please see Interior Finishing under Advice for more information

Insulation

Enjoy your Summerwood Windsor pool cabana in any season and remain comfortable by implementing insulation in the floor, walls, and/or roof.

Insulation for a Windsor building

Electrical

The inside of our Windsor style is deliberately left exposed to accommodate various electrical applications.

Electrical configuration option

Plumbing

Often the Windsor pool house is required to accommodate change rooms, bathroom or bar sinks.

Plumbing for a Windsor design

pricing

Visit "options and accessories" for detail and pricing of our accessories.

Find below pricing for all of the Windsor sizes that we have built so far. Don't see your size? Ask us and we will provide you with a quote.

Note that pricing below is for the base kit only. Doors, windows, and other options are à la cart so that you can customize to your hearts content.

SM Windsor
Pool Cabanas (<70 sq.ft.)

All prices in $USD
Small Windsor
Pool Cabanas, price list
kit size pre-cut pre-assembled

MD Windsor
Pool Cabanas ( 70 - 100 sq.ft.)

All prices in $USD
Medium Windsor
Pool Cabanas, price list
kit size pre-cut pre-assembled
8ft.x12ft. $16,795 $11,756 $19,095 $13,366

LG Windsor
Pool Cabanas (100 - 130 sq.ft)

All prices in $USD
Large Windsor
Pool Cabanas, price list
kit size pre-cut pre-assembled
8ft.x13ft. $18,595 $13,016 $21,095 $14,766
9ft.x12ft. $18,795 $13,156 $21,395 $14,976
10ft.x12ft. $20,995 $14,696 $23,595 $16,516
9ft.x14ft. $21,595 $15,116 $24,995 $17,496

XLG Windsor
Pool Cabanas ( >130 sq.ft.)

All prices in $USD
Medium Windsor
Pool Cabanas, price list
kit size pre-cut pre-assembled
12ft.x11ft. $22,795 $15,956 $26,195 $18,336
10ft.x14ft. $24,295 $17,006 $27,695 $19,386
11ft.x14ft. $26,395 $18,476 $30,395 $21,276
12ft.x14ft. $28,895 $20,226 $33,295 $23,306
12ft.x16ft. $33,095 $23,166 $37,695 $26,386
10ft.x20ft. $33,095 $23,166 $37,695 $26,386
12ft.x18ft. $36,995 $25,896 $42,795 $29,956
14ft.x16ft. $37,295 $26,106 $42,995 $30,096
12ft.x20ft. $37,595 $26,316 $43,895 $30,726
14ft.x18ft. $40,095 $28,066 $46,495 $32,546
12ft.x22ft. $42,295 $29,606 $48,595 $34,016
14ft.x20ft. $43,795 $30,656 $50,195 $35,136
16ft.x18ft. $43,995 $30,796 $50,495 $35,346
11ft.x27ft. $44,095 $30,866 $51,295 $35,906
12ft.x25ft. $44,195 $30,936 $50,395 $35,276
14ft.x22ft. $47,995 $33,596 $55,395 $38,776
16ft.x20ft. $48,195 $33,736 $55,795 $39,056
14ft.x24ft. $48,595 $34,016 $56,095 $39,266
16ft.x22ft. $53,795 $37,656 $62,295 $43,606
18ft.x20ft. $52,895 $37,026 $62,495 $43,746
16ft.x24ft. $59,795 $41,856 $68,495 $47,946
22ft.x21ft. $64,295 $45,006 $73,995 $51,796
18ft.x26ft. $64,295 $45,006 $73,995 $51,796
20ft.x24ft. $63,695 $44,586 $73,495 $51,446
20ft.x26ft. $66,395 $46,476 $76,795 $53,756
24ft.x22ft. $74,395 $52,076 $78,795 $55,156
18ft.x30ft. $66,895 $46,826 $76,995 $53,896
24ft.x24ft. $75,295 $52,706 $82,595 $57,816
20ft.x30ft. $74,095 $51,866 $84,995 $59,496
22ft.x28ft. $74,095 $51,866 $84,995 $59,496
22ft.x30ft. $80,495 $56,346 $92,195 $64,536
24ft.x28ft. $80,895 $56,626 $92,595 $64,816
24ft.x48ft. $138,295 $96,806 $157,795 $110,456
24ft.x52ft. $149,795 $104,856 $171,395 $119,976

Custom Designs

Summerwood will take your custom design and make it your own. If you have something different in mind, talk to one of our designers about bringing it to life.

get a professional involved

Our seasoned designers would love to help you find your ideal design.
We're just a phone call away.

Contact us
