Transform your backyard into majestic masterpiece.

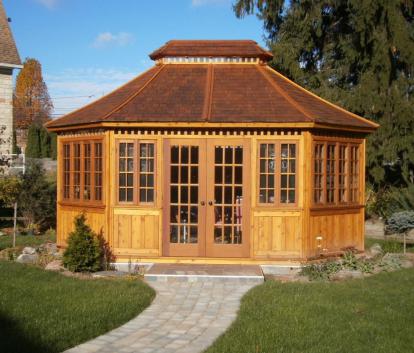

The Champlain is essentially our San Cristobal gazebo style extended on one end, creating a very unique hybrid between a gazebo and a studio. Enjoy the beautiful weather with a book or throw a party and make your Champlain gazebo style the focal point. You can make it your very own in our Custom Design Center. All of the details and specification are up to you. Start now!

Swipe to browse photos or tap for pricing/details.


  • Our premium Champlain patio gazebo is a unique hybrid design between a gazebo and studio making any backyard setting universally appealing. Learn about pricing and your Champlain patio gazebo in these style tabs.

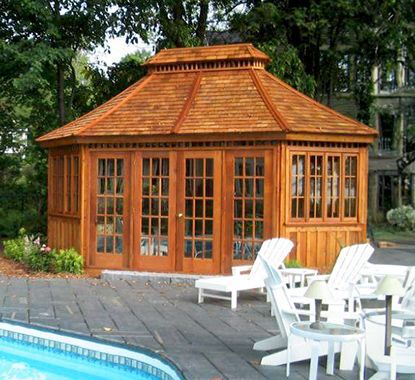

  • Champlain patio gazebo


- Characterized by an elliptically curved hip roof and cupola.
- Beautiful open-air design.
- Solid Western Red Cedar construction.
- The ultimate outdoor party enclosure.

Popular options:
  • French doors
  • Taller Windows
  • Solid Wall Panels
  • Solid Wall Windows
  • Upgraded glass:
    Dual Pane / Frosted / Standard

Floor plans

Below are a few sample floorplans that articulate the popular options associated with the Champlain gazebos. For more ideas and photos, please visit Interiors under inspiration.

  • Floor Plan 1
Popular Champlain door & window configurations
  • Floor Plan 2
Floorplan with an enlarged detail of our gazebo wall-framing component

Try this Floor Plannerto design your own traditional Champlain space and share, as you like.
You may also download graph paper and print out a few sheets to help designing your own space!

What Champlain patio gazebo size should I get?

Depending on the usage, a good rule of thumb to follow is to accommodate a few chairs and a patio table inside the structure. Our smallest patio gazebo (8’) will comfortably accommodate 2 adults. If you need more space, increase the size of your gazebo by 2’ to give extra room for 2 more adults. (i.e. 10’ gazebo holds 4 adults).

Champlain patio gazebo


Level of Difficulty:

Though the Champlain patio gazebo building requires some carpentry skills, it’s a great DIY construction project. Our gazebo kits include easy-to-follow instructions, diagrams, and assembly videos that will help you through the process.

Below is a series of photos showing one of our Champlain building being assembled.

  • Champlain patio gazebo foundation & floor sections

    Gazebo foundation & floor sections

  • Champlain patio gazebo  wall framing materials

    Champlain wall framing materials

  • Champlain patio gazebo Wall assembly & Roof assembly preparations

    Wall assembly & Roof assembly preparations

  • Champlain patio gazebo with French doors and windows

    Champlain with French doors and windows (click image for more details)

  • Champlain patio gazebo Completed

    Completed Champlain patio gazebo (click image for more details)

Hiring a contractor

The Champlain style is manageable to assemble with a couple of extra set of hands, however, if you feel that you may want some assistance check out our hire a contractor page.

Hiring a contractor  Champlain patio gazebo
Building a Champlain gazebo

details & specs

Champlain Patio Gazebo Dimensions

8' 8' - 3 1/16" 11' - 3 1/2" 5" 7' - 5" 3' - 11 1/2"
10' 10' - 1 5/8" 12' - 5" 5" 7' - 5" 4' - 7"
12' 12' - 1/2" 13' - 1" 5" 7' - 5" 5' - 3"
14' 13' - 11 3/16" 13' - 7" 5" 7' - 5" 5' - 9"
16' 15' - 8 15/16" 15' - 4" 7" 7' - 6" 7' - 3"
18' 17' - 8 15/16" 17' - 8 3/4" 7" 8' - 11 1/2" 8' - 2 1/4"
20' 19' - 8 15/16" 18' - 8" 7" 8' - 11 1/2" 9' - 1 1/2"

Our measurements (i.e. Nominal & Actual Building Size) are taken from the outside face of the upright columns. In the figure above it is represented in measurement “A”, it is portrayed in “plan” view in the “Floor Framing” section further down on this page.

Wall Assembly

Gazebo wall assembly example

All our gazebo styles feature built-up columns comprised of upright posts sandwiched by wall sides on either side. The Champlain patio gazebo adds another element with the wall jamb that allows windows to be secured in the wall cavities. Below the windows are recessed cedar panels that form the solid knee wall, and above the window is a cascading system of pickets backed with glazing creating a transom around the top perimeter of the building’s walls.

If you have any other questions pertaining to the size of the building, please do not hesitate to ask us, we're here to help.

Roof Assembly

The Champlain roof increases in complexity as the size increases, below is the roof framing for the Champlain. For smaller sizes, the size and number of components incorporated in the roof structure are reduced.

Champlain roof assembly

Floor Framing

Summerwood’s gazebo floors are built in 8 sections that are fastened together to form the octagonal footprint. The dimension “A” on the figure below references back to the Champlain Patio Gazebo Dimensions Chart above.

Floor sections of a Champlain gazebo


The Champlain style is well suited for a traditional patio stone foundation. A concrete pad foundation or pier footings are also possibilities.

Visit Foundations page for detail.

Framed triangular floor sections


Like all Summerwood gazebos, the Champlain is a fantastic display of premium materials coming together for any of your backyard needs.

item material dimension notes
joists presure treated 2x4 - 2x6 framed triangular sections
skirt cedar 1x4 - 1x6 covers pt material
floor boards cedar 2x6 nailed to cleats to form panels
floor splines cedar 2x2 floor members separating panels
floor center cedar 2x8 center floor component
item material dimension notes
uprights cedar 2x4 - 2x6 centre of supporting column
wall sides cedar 2x6 - 2x8 fastend to either side of upright
wall jambs cedar 2x4 - 2x6 fastend to wall sides
rails cedar 2x3 - 2x4 N/A
wall panels cedar 2x4 & 1x6 N/A
pickets cedar 2x2 N/A
item material dimension notes
rafters cedar 2x8 - 2x12 roof framing members
compression ring cedar 2x8 - 2x12 center framing for cupola
roof boards cedar 1x6 roof substructure
shingles cedar n/a outter skin of the roof
cap & bead cedar n/a trim along roof ridges
item material dimension notes
rafters cedar 2x4 - 2x6 roof framing members
hub cedar 4x4 center framing for cupola
roof boards cedar 1x6 roof substructure
shingles cedar n/a outter skin of the roof
cap & bead cedar n/a trim along roof ridges
cone cedar 2x8 top trim element for the peak

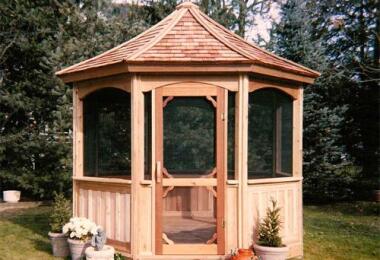

Mix & Match

Like all summerwood styles if you wish to customize your building further you have the option to combine design elements/ building features from one gazebo to another.


Visit "options and accessories" for detail and pricing of our accessories.

Find below pricing for all of the Champlain sizes that we have built so far. Don't see your size? Ask us and we will provide you with a quote.

Note that pricing below is for the base kit only. Doors, windows, and other options are à la cart so that you can customize to your hearts content.


All prices in $USD
Small Champlain
Gazebos, price list
kit size pre-assembled
8ft. $39,395
10ft. $46,195
11ft. $48,595
12ft. $50,095
14ft. $64,895
16ft. $81,695

Custom Designs

Summerwood will take your custom design and make it your own. If you have something different in mind, talk to one of our designers about bringing it to life.
