This section includes all the structural dimensions, elevations, sample permit drawings and engineering calculations you'll need to plan for your Glen Echo building. Should you have any other questions, please do not hesitate to contact us.



Elevation Dimensions

Please click here to learn more about the many windows, doors and other options available for this design.

Glen Echo Height Chart
	Overall Height (C)
Depth (Dimension A)	Standard overhang (6")	Plus 6" Additional overhang (12")
8ft.	11' 4 1/8"	11' 9 5/8"
10ft.	12' 1 1/8"	12' 4 5/8"
12ft.	12' 8 1/8"	12' 11 5/8"

Floor

The total heights listed above, included the floor. If you don't want your building to include the floor, simply subtract the following dimensions:

Building Depth (Dimension A)
< 10ft.	10ft. 12ft.
5 5/8"	7 5/8"

Extra Height and Overhang

Extra height and overhang may be added to your structure at the time of sale. If you add extra height to your building, simply increase the overall height of the building by the added amount. To see how extra overhang affects the overall height of your building, please see the dimensions above.

Plan Dimensions

Please note:

• - One row of 1 x 6 cedar skirting is provided with each structure (providing the floor is not omitted)
• - To calculate the square footage, multiply A x B e.g. a structure with dimensions 8 ft. x 12 ft. (where A=8 and B=12), equal 96 sq. ft. - please note that the roof on this building is larger than the base therefore, the square footage here, refers to the building, not the roof.

Glen Echo floor

Please see the Glen Echo height chart for dimensions and layout.

View a sample set of floor plans for this or any of our other styles.

Notes on Dimensions

• Our measurements (i.e. 8ft. x 12ft.) are taken from the outside of the floor plates and studs, therefore, they don't include the siding
• For true interior measurements, subtract the floor plates/studs (i.e. 2 x 3 1/2" = 7"). Note: 2 x 4 is actually 1 1/2" x 3 1/2" due to the properties of "finished lumber"
• For true exterior dimensions, also add the siding and corner pieces. The Canexel siding is 1/2" thick, the cedar siding is 3/4" thick and the log siding is 1 1/2" thick. The corner trim is 3/4" thick (see figure below).

If you have any other questions pertaining to the size of the building, please do not hesitate to ask us, we're here to help.

Details

The Glen Echo has a gable roof style and therefor a good loft size that can be used for storage.

To see exactly what the structure is made of, please see the Construction Cutaway drawing.

Materials

Every structure, regardless of style or size, is designed and manufactured to exacting standards. We use the finest materials available and provide options where possible. If there is a particular item you would like and it's not part of our offering, we are happy to try and source it for you. For information on the various materials we use, please see the Materials section under Information.

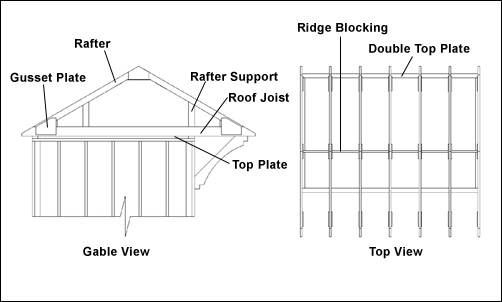

Roof Details

Engineering And Technical Details

Our buildings are designed to withstand the rigors of life in North America. It is rare that our specs will not meet code. Whether you live in the Northeast, the Southwest or anywhere in between, snow and wind calculations have all been considered in the design of your product (so you won't have to worry about ever leaving Kansas). Our engineering is solid.

For example, in climates like Alaska, Colorado and Maine where snow loads are important and the PSF reaches 70, our construction not only stands up to these codes but exceeds them. If you'd like to see what the snow & wind loads are in your area, please click here.

In areas where wind is a factor like Florida, Louisiana and Rhode Island, the wind load PSF reaches 140. Again, our construction is above standard.

Should you have any specific requirements for roof construction to satisfy specific and unique bylaws, please let us know and we'll build your roof to comply. A small surcharge may apply.

Permits & Drawings

If you require a permit drawing for your Glen Echo building, we can accommodate your requests. To see what a set of generic permit drawings look like, please click here. For more details, please see permits under our Information section.
